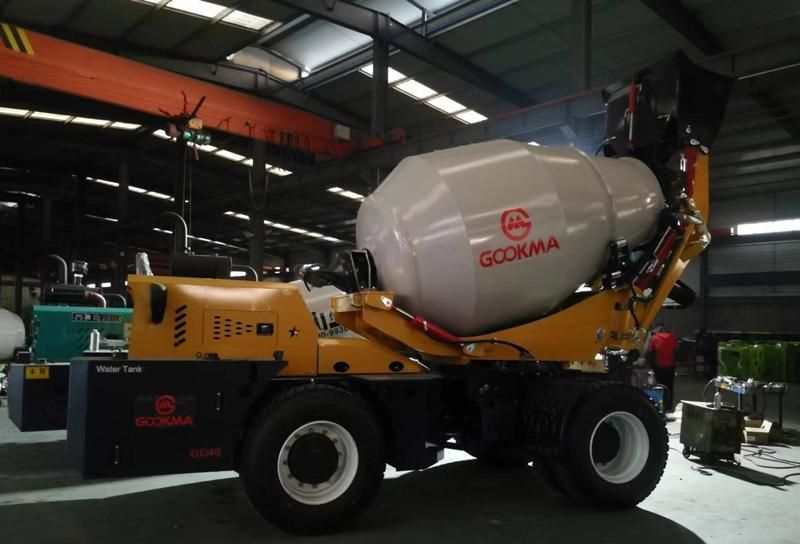

Self-feeding Concrete Mixer GM40

● Production Capacity: 4.0m3/batch. (1.5m3 - 4.0m3 optional) ● Total Drum Capacity: 6500L. (2000L - 6500L optional) ● Three-in-One perfect combination of mixer, loader and truck. ● Cabin and mixing tank can rotate 270° simultaneously. ● Automatic feeding and mixing system.

Products Details

1.Three-in-one perfect combination of mixer, loader and truck. 2. Automatic feeding and mixing system.  3. Cabin and mixing tank can rotate 270° simultaneously, multi-angle feed discharging.  4. Double sides traveling. Tank body can go up and down. 5. Professional reducer for concrete mixer. 1200-25.5 tire of wire explosion-proof.  6. Rexroth hydraulic system.  7. Unique design, double hydraulic system, double hydraulic oil tank, double tugwheel, big rotating table, greatly increase the safety and stability during operating.  8. With air conditioner, driving image, automatic water taking, high pressure water pump, high pressure washing machine, self-sucking diesel pump.
Name Self-feeding Concrete Mixer
Model GM40
Production capacity 4.0m3/batch, 4-6 batches/hour, 16-24m3/hour
Total drum capacity 6500L
Engine Yuchai YC4108 turbo-charged, water cooling, 91kw
Drum rotating speed 24rpm
Max speed 35km/h
Max gradeability 40°
Min turninng radius 5300mm
Min ground clearance 380mm
Gearshift 4 forward  + 4 backward
Fuel tank capacity 120L
Oil tank capacity 16L
Dual gear pump Rexroth
Hydraulic motor Rexroth
Water tank volume 920L
Water supply mode Time relay
Curb weight 8400kg
Overall dimensions             L*W*H 6450*3000*3500mm
