| Item | Unit | Data | ||
| Name | Rotary Drilling Rig with Lock Pipe | |||
| Model | GR350 | |||
| Max. Drilling Depth | m | 35 | ||
| Max. Drilling Diameter | mm | 1500 | ||
| Engine | / | Cummins 6BT5.9-C210 | ||
| Rated Power | kW | 153 | ||
| Rotary Drive | Max. Output Torque | kN.m | 110 | |
| Rotary Speed | r/min | 17-35 | ||
| Main Winch | Rated Pulling Force | kN | 100 | |
| Max. Single-rope Speed | m/min | 55 | ||
| Auxiliary Winch | Rated Pulling Force | kN | 15 | |
| Max. Single-rope Speed | m/min | 30 | ||
| Inclination of the Mast Lateral / Forward / Backward | / | ±5/5/15 | ||
| Pull-Down Cylinder | Max. Pull-down Piston Push Force | kN | 80 | |
| Max. Pull-down Piston Pull Force | kN | 100 | ||
| Max. Pull-down Piston Stroke | mm | 3000 | ||
| Chassis | Max. Traveling Speed | km/h | 2 | |
| Max. Grade Ability | % | 30 | ||
| Min. Ground Clearance | mm | 350 | ||
| Crawler Board Width | mm | 600 | ||
| System Working Pressure | Mpa | 35 | ||
| Machine Weight (Exclude Drill Tools) | t | 35 | ||

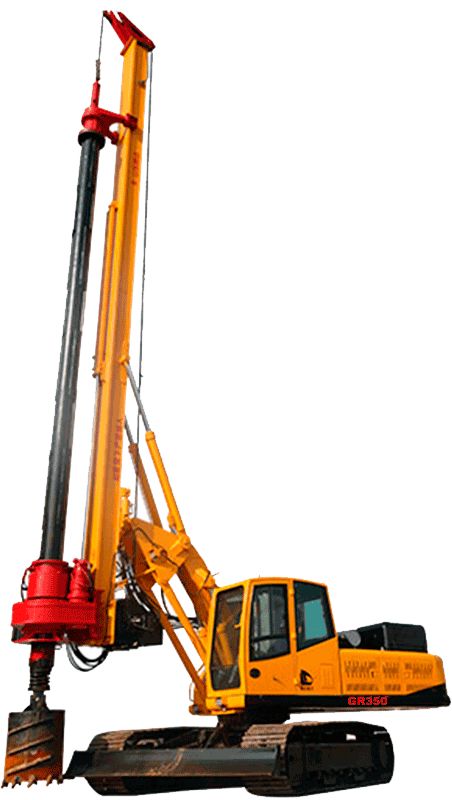

| Overall Dimension | Working Status L×W×H | mm | 7450×3800×13900 | |

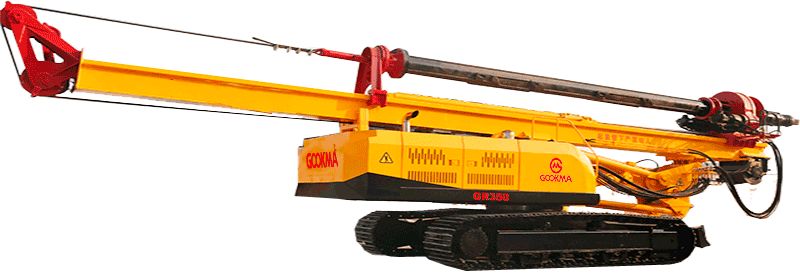

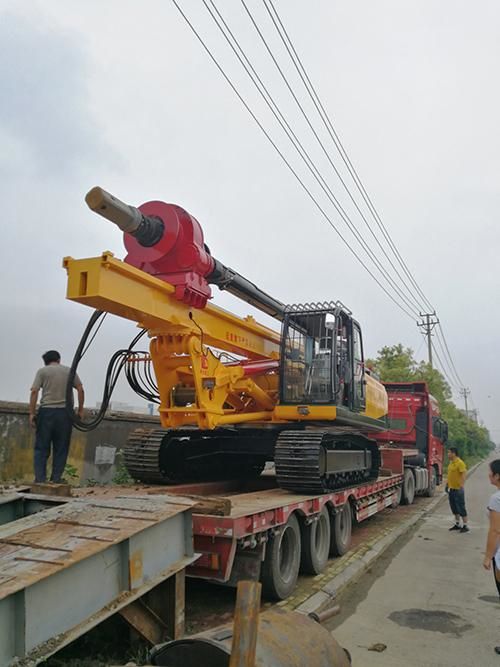

| Transportation Status L×W×H | mm | 13800×3000×3500 | ||
Remarks:
| ||||
4.The power head is designed lightly, with strong torque, high construction efficiency and stepless speed change of two motors. 5.The structure of the upper guide frame ensures the perpendicularity between the drill pipe and the ground, makes the construction more convenient, improves the construction efficiency and increases the safety； 6. Hydraulic circuit system adopts advanced concepts and is specially designed for optimum design of rotary drilling rig. It has the characteristics of stable rotation and fast hoisting speed.
