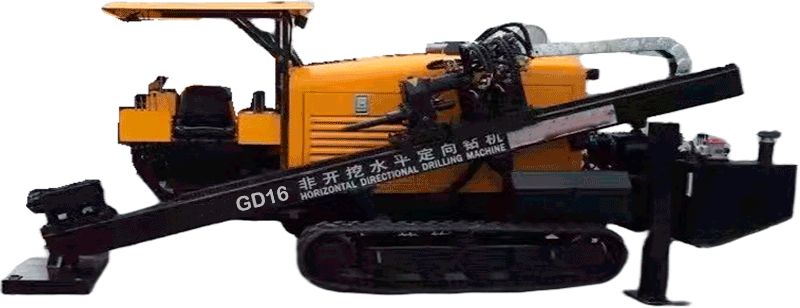

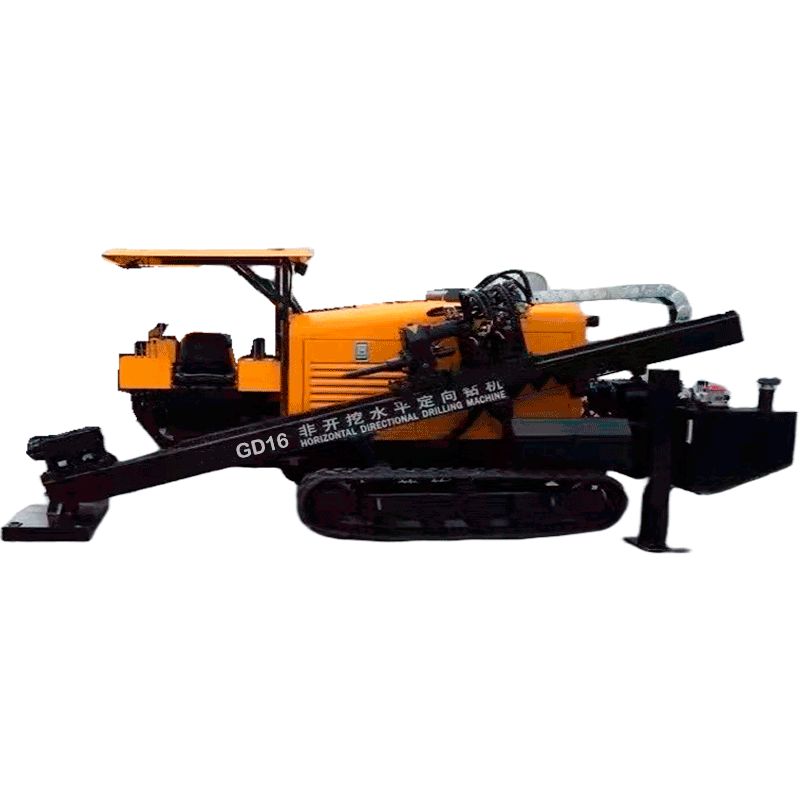

Horizontal Directional Drilling Machine GD16

● Max. drilling length:200m ● Max. drilling diameter:700mm ● Max. push-pull force:160KN ● Power:97kw, Cummins

Products Details

Stable Performance, Excellent Efficiency 1. Integrated design, very nice overall looking. 2.Power head push-pull device adopts famous brand orbit motor, push-pull has two speeds for option, the quick speed during construction is far ahead other competitors. 3.Power head rotating device driven by famous brand orbit motor, bit torque, high rotating speed, stable performance, good holing effect, high construction efficiency. 4.Power head rotating and push-pull hydraulic system adopts advanced series-parallel controlling technology and famous brand hydraulic components, with independent radiating system, reliable and stable, high working efficiency and energy saving.
Model GD16
Engine Cummins, 97KW
Max torque 5000N.m
Push-pull drive type Rack and pinion
Max push-pull force 160KN
Max push-pull speed 45m/min.
Max slewing speed 195rpm
Max reaming diameter 700mm (depends on soil condition)
Max drilling distance 200m (depends on soil condition)
Drill rod φ60x2000mm
Mud pump flow 180L/m
Mud pump pressure 8Mpa
Walking drive type Crawler self-propelling
Walking speed 2.5--4.5km/h
Entry angle 12-22°
Max gradeability 18°
Overall dimensions 4200x1800x2000mm
Machine weight 4500kg
5.Adopts first class hydraulic walk driving device, simple and convenient for operation, fast and convenient for loading to and unloading from truck and transferring between job sites. 6.Compact structure, moderate size, matches with φ60×2000mm drill pipe, by consideration of the requirements of high efficiency construction and small workplace. 7. The electrical circuits is of simple design, low breakdown, convenient for maintenance. 8. Equips with Cummins engine, strong power, stable performance, low fuel consumption, low noise, environmental protection, suitable for construction even in down town.
